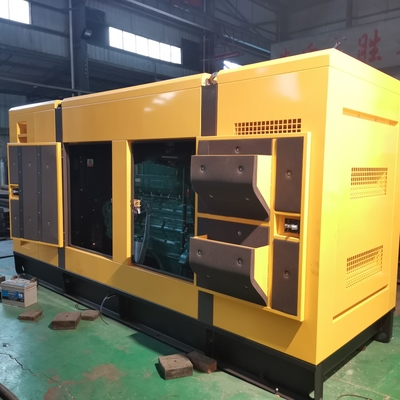

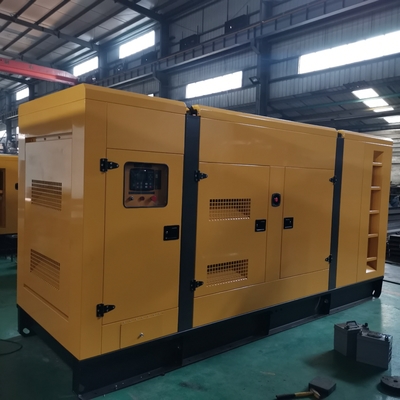

300kva Silent Type Diesel Generator 330kva 50Hz 3 Phase Standby Diesel Generator Set

300kva Silent Type Diesel Generator 330kva 50Hz 3 Phase Standby Diesel Generator Set



Applications:

1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6. Standby power or main power, indoor or outdoor using.



Genset Specifications

Genset model	SHX-300
Genset rated power	240KW / 300KVA
Rated voltage	230V / 400V (adjustable)
Rated current	432 Amps
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	4200×1400×2100
Weight (kg)	3800



Engine Specifications

Diesel Engine
Brand	CCEC CUMMINS
Model	NTA855-G1A
Engine structure	6 cylinders vertical in line, 4 stroke, turbocharged
Rotating speed	1500 RPM
Engine cooling method	Water-cooled
Speed governing system	Electronic speed governor
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	14
Bore×Stroke(mm)	140×152
Compression ratio	14.5: 1
100% Load fuel consumption (litre/h)	≤63.2
Lube oil capacity(L)	14



Alternator Specifications

Alternator
Brand	FARRAND
Model	FLD444D
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23



Why choose Cummins powered gensets?

1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality

almost the same as the US Cummins.

2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.

3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal

which make the maintenance and reparation very simple.

4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.

5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere

around the world.





Automatic Transfer Switch (ATS)

Automatic Transfer Switches are an integral part of the power generation process, which allows smooth and

immediate transfer of electrical current between multiple sources and the load. When the generator is operating,

the transfer switch prevents dangerous feedback of current to the utility’s system. It also ensures that different

power sources are fully synchronized before their power is combined or loads are transferred, which is imperative

for safe operation.

The transfer switch senses when utility power is interrupted, and starts up the generator if the utility power remains

absent. In about five to ten seconds, when the generator is producing full power, the transfer switch disconnects the

load from the utility and connects it to the generator, restoring electricity to the load. The transfer switch continues to

monitor utility power, and when it is restored, switches the load from the generator back to the utility. Once the generator

is disconnected, it goes through a cool-down routine and shut down automatically.
